Alvin Drafting Paral-Liner Parallel Straightedges
Model Number:
1101-30 / 1101-36 / 1101-42 / 1101-48 / 1101-60

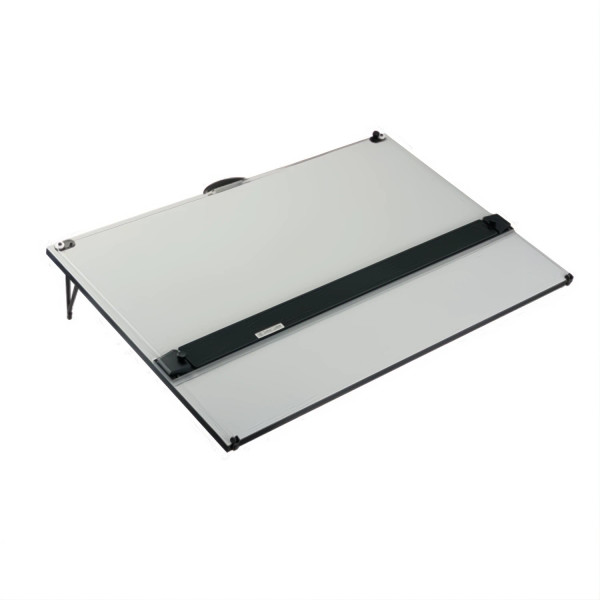

The Alvin Paral-Liner Straightedge Parallel Bars are perfect for drafting, engineering and construction applications.
Features:
- Professional quality, top-mounted bar
- Rigid phenolic construction with a black satin finish.
- Mobile straightedge affords frictionless operation through the floating action of the nylon rollers mounted on the blade.
- The rollers retract at a touch, securing the blade for accurate drawing.
- Acrylic edges are elevated to prevent ink smears and steel ball-bearing pulleys provide smooth movement.
- Comes with all mounting hardware and installation instructions.
Specs:
- 30" straightedge/parallel bar - For use with tables 30" and wider
- 36" straightedge/parallel bar - For use with tables 36" and wider
- 42" straightedge/parallel bar - For use with tables 42" and wider
- 48" straightedge/parallel bar - For use with tables 48" and wider
- 60" straightedge/parallel bar - For use with tables 60" and wider
Product Dimensions:
- Outside Dimensions: 30" / 36" / 42" / 48" / 60"
- Product Weight: 1.8 lbs.
Assembly Instructions
- Q. Was the length of 42" of the Product number 1101-42 the 'physical length' of the parallel straight-edge or is this the 'working space'. My drawing board is measured exactly 42" from edge to edge and I'm worried that the parallel will go beyond. Your reply will be highly appreciated. Thank you. (Ron G.)
- A. All of our parallel bar measurements are the actual lengths of the bars and are made to fit the corresponding size drafting table. For example, a 42" straightedge or parallel bar is meant to go all the way across a 30" x 42" drafting board or table top.
- Q. Can this be installed on a glass top drafting table? (Lisamarie V.)
- A. Unfortunately, the Alvin Paral-Liner Straightedge cannot be mounted to a glass-top table because the mounting hardware for the top pulleys needs to attach to the top surface of the table and glass and can not be screwed into.
- Q. Does this come with mounting hardware? (Rusty B.)
- A. Yes, the Paral-Liner comes with all hardware necessary to mount on the board.
