Ellipse Templates

Contains 10 projections from 15° to 60° in increments of 5°. Major axes of-3/8" to 2½". Size: 6" x 10" x .020".

Pickett ellipse templates are suitable for many drafting needs. Manufactured with drawing risers that separate the template underside from the drawing surface to ensure clean, smear-free results. 40° Ellipse Set. 12 openings from 2 1/8" to 4". ...

Contains 78 ellipses in five projections of 20 30 40 50 and 60. Size range from ¼" to 1½". Size: 6½" x 11" x .030".

Contains 79 ellipses with projections of 15°, 30°, 45° and 60° 15° projections from 3/16" to 1-5/8", 30° From 1/8" to 1½", 45° from 1/8" to 1 �", and 60° from 1/8" to 1-5/8". Size: 11" X 8½"....

Pickett ellipse templates are suitable for many drafting needs. Manufactured with drawing risers that separate the template underside from the drawing surface to ensure clean, smear-free results. 45° Ellipse Set. 12 openings from 2 1/8" to 4". ...

Pickett ellipse templates are suitable for many drafting needs. Manufactured with drawing risers that separate the template underside from the drawing surface to ensure clean, smear-free results. 20° Ellipse Set. 12 openings from 2 1/8" to 4". ...

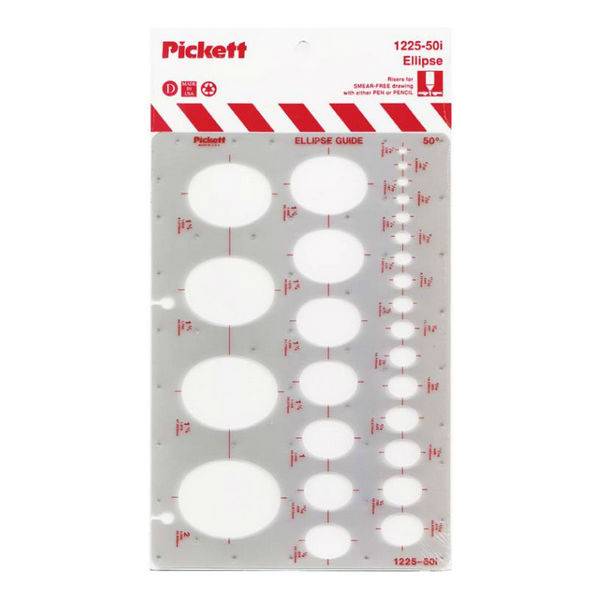

Pickett ellipse templates are suitable for many drafting needs. Manufactured with drawing risers that separate the template underside from the drawing surface to ensure clean, smear-free results. 50° Ellipse Set. 12 openings from 2 1/8" to 4". ...

Contains 12 isometric ellipses with axes from 1½" to 2" in increments of 1/8" and from 2" to 7" increments of ¼". Size: 6" x 9-7/8" x .030".

Contains 74 ellipses in projections of 15 30 45 and 60. Major axes of-5/16" to 2 ¼". Size: 8¾" x 12" x .030".

Pickett ellipse templates are suitable for many drafting needs. Manufactured with drawing risers that separate the template underside from the drawing surface to ensure clean, smear-free results. 30° Ellipse Set. 12 openings from 2 1/8" to 4". ...

Contains 13 projections from 10° through 90°. Major axes of 7/16" to 1¾" 195 ellipses. Size: 6 ¼" x 10" x .020".

Contains 60 ellipses in four projections of 25 35 45 and 60. Size range from ¼" to 13/8". Size: 5" x 10 ¼" x .030".

Contains 12 templates from 5° through 60°. Use for drawing ellipses from 4" to 10". 5° 10° 15° 20° 25° 30° 35° 40° and 45° templates have 12 cutouts and progress from 4" to 10" in ½"...

Contains four projections of 15 30 45 and 60. Size range from 1/8" to 1¾". Size: 8-11/16" x 12" x .030".

Contains five projections 20° through 60° in increments of 10°. Size range ¼" to 1½". Size: 5" x 11" x 0.30".

Pickett ellipse templates are suitable for many drafting needs. Manufactured with drawing risers that separate the template underside from the drawing surface to ensure clean, smear-free results. 55° Ellipse Set. 12 openings from 2 1/8" to 4". ...

Contains 60 ellipses in four projections of 15° 30° 45° and 60°. Major axes of 1 ¼" to 6½". Size: 4½" x 8" x .020".

Pickett ellipse templates are suitable for many drafting needs. Manufactured with drawing risers that separate the template underside from the drawing surface to ensure clean, smear-free results. 60° Ellipse Set. 12 openings from 2 1/8" to 4". ...

Pickett ellipse templates are suitable for many drafting needs. Manufactured with drawing risers that separate the template underside from the drawing surface to ensure clean, smear-free results. 15° Ellipse Set. 12 openings from 2 1/8" to 4". ...

Pickett ellipse templates are suitable for many drafting needs. Manufactured with drawing risers that separate the template underside from the drawing surface to ensure clean, smear-free results. 25° Ellipse Set. 12 openings from 2 1/8" to 4". ...

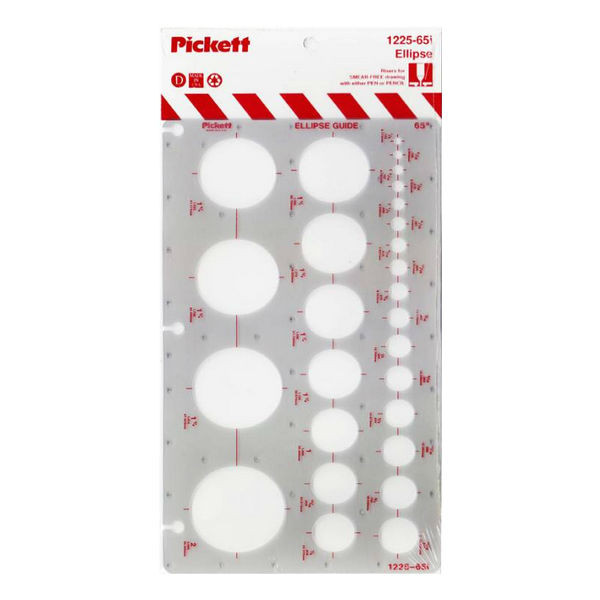

Pickett ellipse templates are suitable for many drafting needs. Manufactured with drawing risers that separate the template underside from the drawing surface to ensure clean, smear-free results. 65° Ellipse Set. 12 openings from 2 1/8" to 4". ...

Pickett ellipse templates are suitable for many drafting needs. Manufactured with drawing risers that separate the template underside from the drawing surface to ensure clean, smear-free results. 70° Ellipse Set. 12 openings from 2 1/8" to 4". ...

Pickett ellipse templates are suitable for many drafting needs. Manufactured with drawing risers that separate the template underside from the drawing surface to ensure clean, smear-free results. 75° Ellipse Set. 12 openings from 2 1/8" to 4". ...

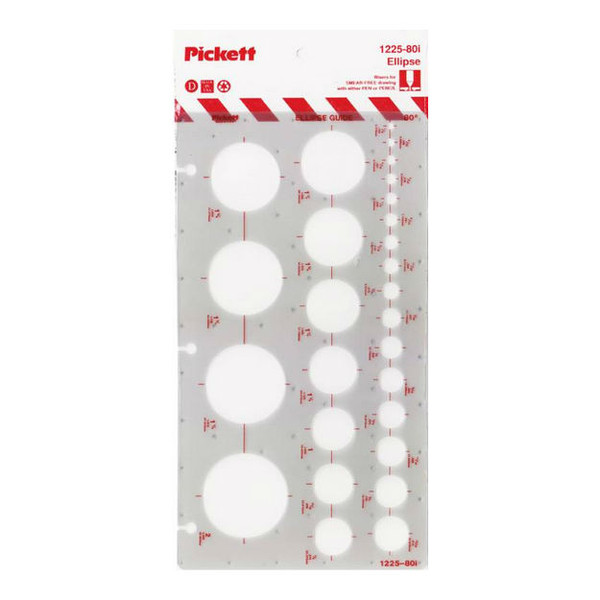

Pickett ellipse templates are suitable for many drafting needs. Manufactured with drawing risers that separate the template underside from the drawing surface to ensure clean, smear-free results. 80° Ellipse Set. 12 openings from 2 1/8" to 4". ...
