Alvin / Pacific Arc PXB Portable Drafting Boards #PXB21

~~Retail: $157.50~~

Price: $103.70

You Save: $53.80 (34.2%)

SIZE:

Quantity:

Model Number: PXB21 / PXB24 / PXB26 / PXB31 / PXB36 / PXB42

Brand: Alvin / Pacific Arc

Estimated Delivery Time: 3 - 7 Business Days

Alvin / Pacific Arc PXB Portable Drafting Boards

Model Number: PXB21 / PXB24 / PXB26 / PXB31 / PXB36 / PXB42

This is the original Alvin PXB Board from the original manufacturer!

Drawing Boards with under-mounted wires are NOT Recommended for Professional Use!

Click here for Professional Portable Boards --> Professional Portable Boards

Portable drawing and drafting board with built-in parallel straightedge for all kinds of creative and technical applications. Perfect for students and those who need an accurate drawing surface but don't have the space for a full-size drafting table. Fully assembled!

Features:

Available in multiple sizes: 16" x 21", 18" x 24", 20" x 26", 23" x 31", 24" x 36" or 30" x 42"

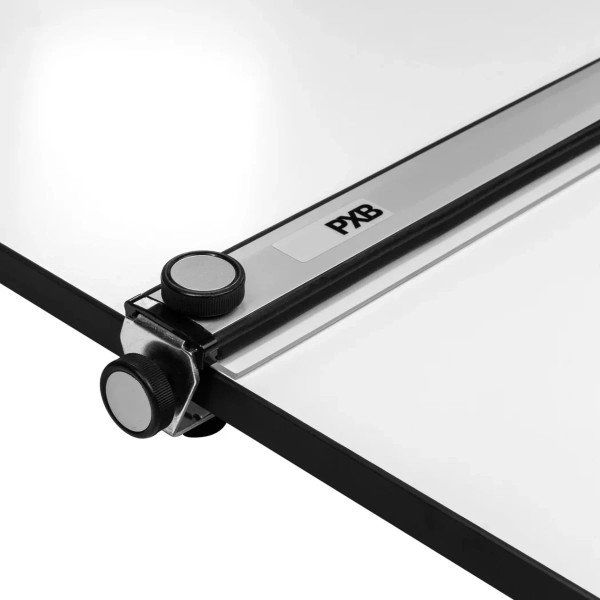

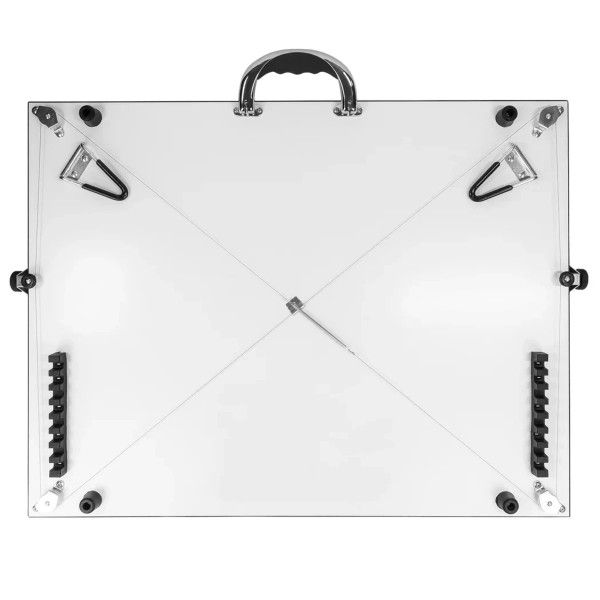

Aluminum straightedge with soft, rubber edges for enhanced grip, comfort and control. Straightedge glides smoothly up and down the board while the cross-wire and pulley system underneath keeps it parallel in any position.
Straightedge can travel within 1/4" of the top and bottom edges of the board to maximize usage of the entire board surface.
Crystal clear acrylic blade is 0.12" thick and includes inking edges underneath to minimize smudging. Blade clearance is 3/16" for use with foam board, cutting mats, and more.
Straightedge has brake mechanisms on each end for secure, positive locking in any location on the board. Large brake knobs include rubber grips for comfort.
Straightedge has top-mounted adjustment knobs on each end for fine-tuning parallelism. Especially useful when reinserting a drawing on the board for additional work.
Smooth, white Melamine surface for bump-free drawing. Particle board substrate is 0.63" thick for strength and durability.
Folding metal legs are set at an angle to prevent accidental collapse and include rubber-dipped ends to prevent scratching.
Boards can be used in the elevated or flat position.
Rubber grip tracks underneath allow front of board to overhang a table edge up to 8". This increases the working angle and brings the drawing surface closer to the user.
Large, comfortable carry handle
Drawing board is CARB compliant and all components are phthalate and lead-free

Product Dimensions:

Outside Dimensions: 16" x 21" to 30" x 42"
Product Weight: 8 lbs.

Assembly Instructions
